Time Series

Overview

Teaching: 20 min
Exercises: 25 min

Questions

• How can I load a time series in Pandas?

• What features are available for working with time series?

Objectives

• Show how to load a time series.

• Show how to set up a DataFrame so that it can be used for time series analysis.

• Show working with and plotting time series data.

A Time Series is a set of data points collected at constant time intervals. These can be analyzed to determine the long term trend, so as to forecast the future, or perform some other form of analysis. But what makes a time series different from say a regular regression problem?

There are 2 things:

1. It is time dependent. So the basic assumption of a linear regression model that the observations are independent doesn’t hold in this case.
2. Along with an increasing or decreasing trend, most time series have some form of seasonality trends, i.e. variations specific to a particular time frame. For example, if you see the sales of a woolen jacket over time, you will invariably find higher sales in winter seasons.

In this lesson, we’ll look at some of the properties of a time series, by examining the the Arctic Oscillation (AO) and North Atlantic Oscillation (NAO) data sets

Loading Data

We’ll start by loading a time series of the Arctic Oscillation (AO) data set, which is contained in the monthly.ao.index.b50.current.ascii file. Each row in the file contains three entries: year, month, and value. Here is the code to load the data set:

ts = pd.read_table('monthly.ao.index.b50.current.ascii', header=None, sep='\s+', parse_dates=[[0,1]])

Other than the name of the file, we also have to tell Pandas that there is no header row using header=None. Next, we have to specify the type of delimiter, since the read_table method assumes a tab character. The string '\s+' tells it to use one or more spaces or tabs. We also have to specify that we want to use a combination of the first and second columns as the time series, which is done using the parse_dates argument.

The ts variable should now contain a DataFrame like the following:

           0_1         2
0   1950-01-01 -0.060310
1   1950-02-01  0.626810
2   1950-03-01 -0.008128
3   1950-04-01  0.555100
4   1950-05-01  0.071577
5   1950-06-01  0.538570
6   1950-07-01 -0.802480
7   1950-08-01 -0.851010
8   1950-09-01  0.357970
9   1950-10-01 -0.378900
10  1950-11-01 -0.515110
...

To make the data set even more useful, we really want the index for the DataFrame to be the time series rather than have it stored as a column. Also, notice that the time series starts at the beginning of each month. Since the data actually represents the AO for the whole month, we want these dates to be the end of the month instead. We can also give the index and column a name rather than just a number. To fix up the DataFrame use the following few statements:

ts.set_index('0_1', inplace=True) # make the '0_1' column into an index
ts.index = ts.index.to_period().to_timestamp('M') # convert dates to end of month
ts.index.name = 'Date' # Give the index a name
ts.columns = ['AO']
print(ts)

Now the DataFrame looks like this, which is much better:

                  AO
Date
1950-01-31 -0.060310
1950-02-28  0.626810
1950-03-31 -0.008128
1950-04-30  0.555100
1950-05-31  0.071577
1950-06-30  0.538570
1950-07-31 -0.802480
1950-08-31 -0.851010
1950-09-30  0.357970
1950-10-31 -0.378900
1950-11-30 -0.515110
...

Let’s try some different plots of the data:

ts.plot()
plt.show() # may need this to show the plot

Zoom in on a 10-year range:

ts['1980':'1990'].plot()

Or part of a year:

ts['1980-05':'1981-03'].plot()

Notice that it is possible to use a partial date to index the data. For example we can look up a single month using:

print(ts['1960-01'])

                AO
Date
1960-01-31 -2.4842

Or a single year using:

print(ts['1960'])

                  AO
Date
1960-01-31 -2.484200
1960-02-29 -2.212400
1960-03-31 -1.624600
1960-04-30 -0.297310
1960-05-31 -0.857430
1960-06-30  0.054978
1960-07-31 -0.619060
1960-08-31 -1.007900
1960-09-30 -0.381640
1960-10-31 -1.187000
1960-11-30 -0.553230
1960-12-31 -0.342950

Passing only a portion of a date is known as partial string indexing.

Challenge

Other forms of indexing work too. What do you think the following statement would display?

ts[ts.AO > 0]

Let’s now make it a bit more interesting and add another data set. This time we’ll load the NOA data set and add it to the original one.

nao = pd.read_table('norm.nao.monthly.b5001.current.ascii', header=None, sep='\s+', parse_dates=[[0,1]])
nao.set_index('0_1', inplace=True)
nao.index = nao.index.to_period().to_timestamp('M')
ts['NAO'] = nao
print(ts)

                  AO       NAO
Date
1950-01-31 -0.060310  0.920000
1950-02-28  0.626810  0.400000
1950-03-31 -0.008128 -0.360000
1950-04-30  0.555100  0.730000
1950-05-31  0.071577 -0.590000
1950-06-30  0.538570 -0.060000
1950-07-31 -0.802480 -1.260000
1950-08-31 -0.851010 -0.050000
1950-09-30  0.357970  0.250000
1950-10-31 -0.378900  0.850000
1950-11-30 -0.515110 -1.260000
...

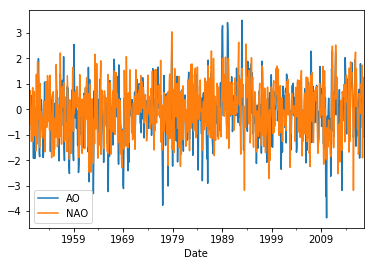

Let’s plot it:

ts.plot()

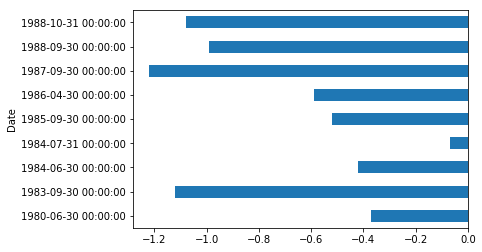

What if we wanted to plot all NAO values in the 1980s for months where AO is positive and NAO is negative, and then plot them?

import datetime
ts.loc[(ts.AO > 0) & (ts.NAO < 0)
        & (ts.index > datetime.datetime(1980,1,1))
        & (ts.index < datetime.datetime(1989,1,1)),
        'NAO'].plot(kind='barh')

Resampling

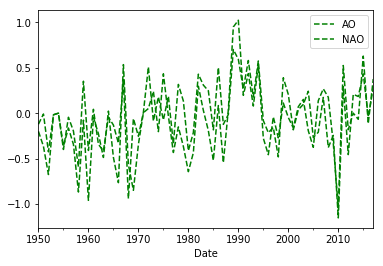

Pandas provide easy way to resample data to different time frequency. Two main parameters for resampling is time period you resample to and the method that you use. By default the method is mean. The following example calculates annual (‘A’) mean of the AO data set:

AO_mm = ts.AO.resample('A')
AO_mm.mean().plot(style='g--')

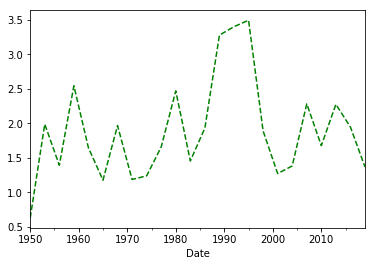

You can also specify your own resampling method (change resampling period over 3 years):

import numpy as np
AO_mm = ts.AO.resample('3A')
AO_mm.apply(np.max).plot(style='g--')

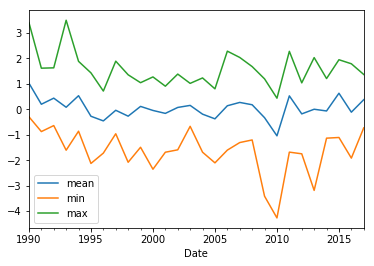

Multiple plots on the same figure:

AO_mm = ts.AO.resample("A")
AO_mm.mean()['1990':'2020'].plot(label='mean')
AO_mm.apply(np.min)['1990':'2020'].plot(label='min')
AO_mm.apply(np.max)['1990':'2020'].plot(label='max')

Moving Statistics

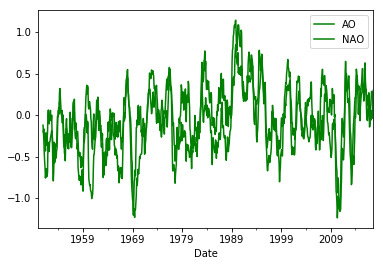

Rolling mean:

ts.rolling(window=12).mean().plot(style='-g')

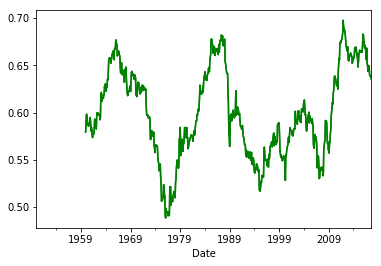

Rolling correlation:

ts.AO.rolling(window=120).corr(ts.NAO).plot(style='-g')

Challenge

How would you apply your own rolling function to the data set? What arguments does the function need to accept?
